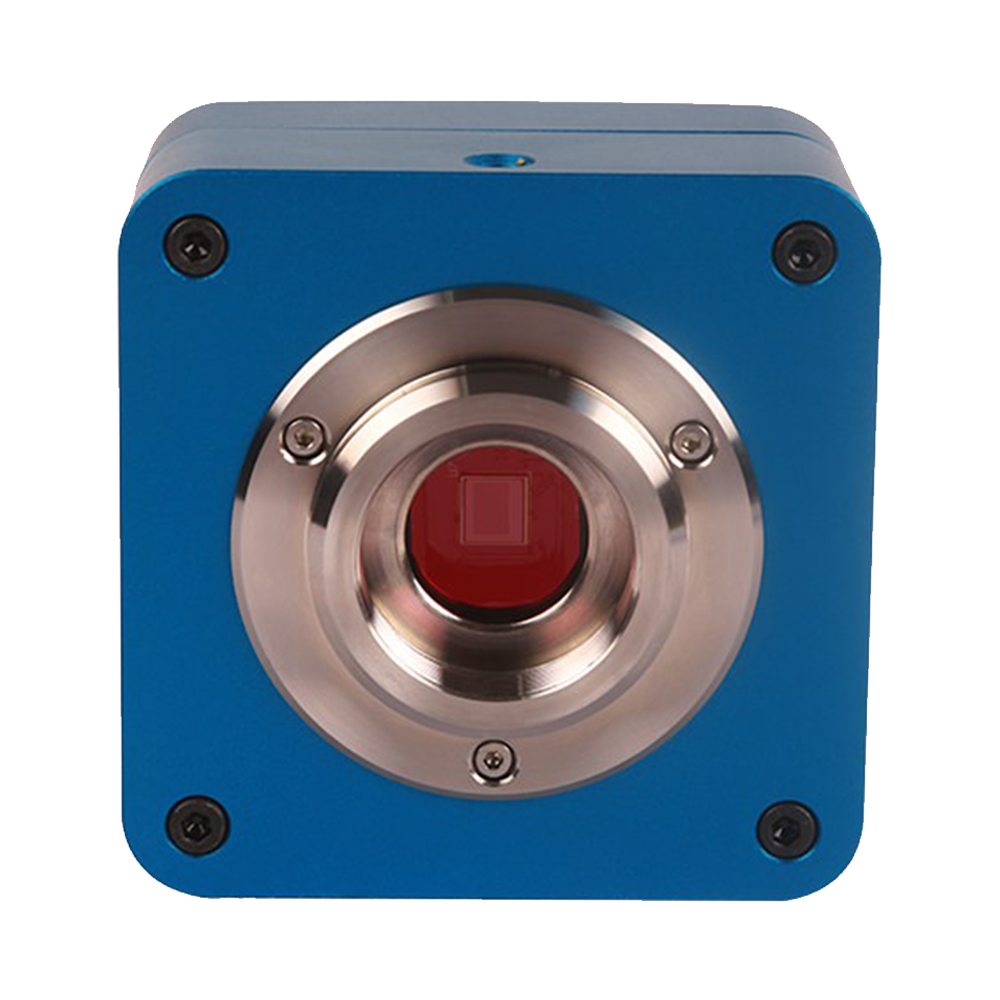

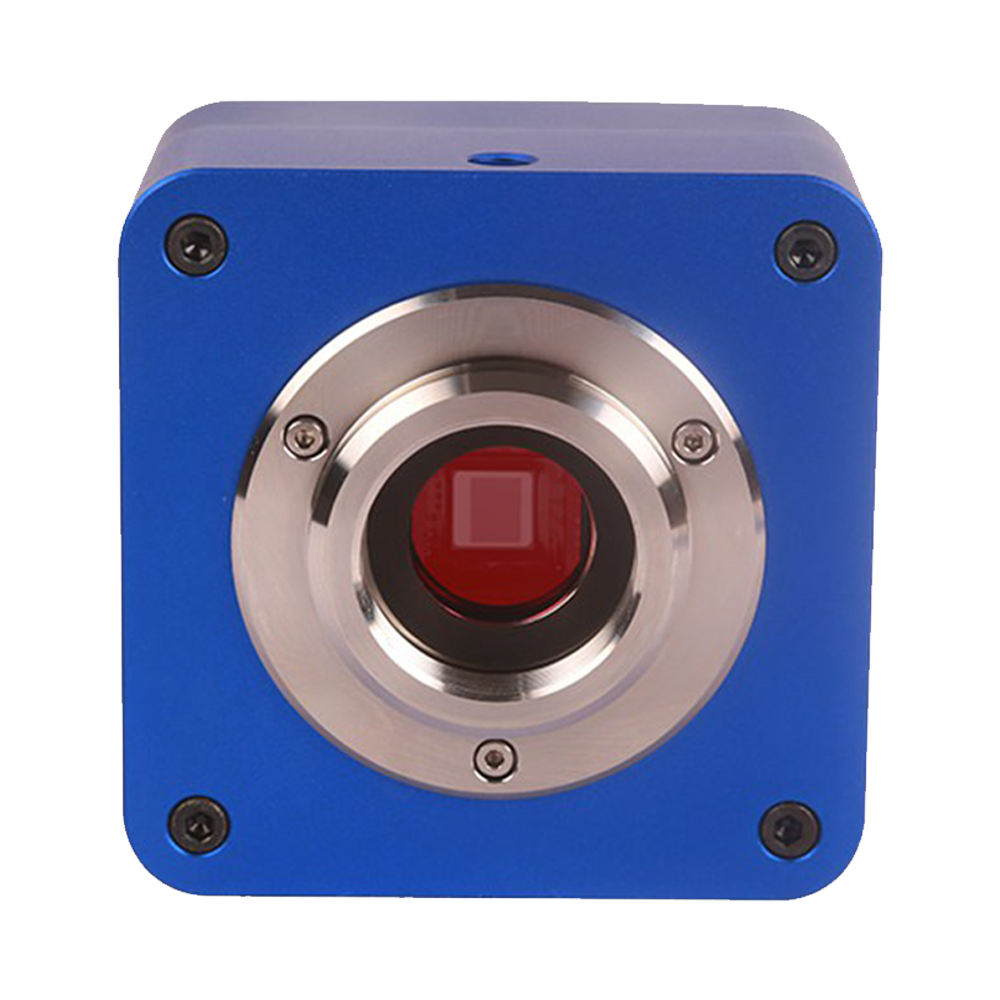

U3CCD01400KMB Microscopy Camera/Microscope Camera

Product Introduction

The U3CCD01400KMB is a 1.4MP monochrome USB3.0 CCD camera equipped with the Sony ICX825ALA ExView HAD CCD sensor, with monochrome design combined with 6.45 µm ultra-large pixels achieving exceptional light collection capability. The 2000 mv ultra-high sensitivity and 4.8 mv low dark current make it an ideal choice for extremely low-light imaging. The perfect combination of 25 fps high frame rate and monochrome design makes it particularly suitable for fluorescence microscopy, astronomical observation, night vision monitoring, and other professional applications with extremely high sensitivity requirements.

Key Features

• Sony ICX825ALA ExView HAD CCD monochrome sensor with 1.4MP high-sensitivity imaging
• Monochrome design achieving 2000 mv extremely high sensitivity
• 6.45 µm ultra-large pixels maximizing photon collection capability
• 2/3-inch sensor area optimizing low-light performance
• 4.8 mv research-grade ultra-low dark current
• ExView HAD technology enhancing near-infrared spectral response

• 25 fps high frame rate supporting real-time low-light imaging
• Large pixel design particularly suitable for extremely low-light applications
• CCD global shutter ensuring imaging precision
• USB3.0 high-speed transmission ensuring data stability
• Long exposure capability supporting signal accumulation
• Monochrome output providing maximum quantum efficiency

The U3CCD01400KMB is a scientific-grade CCD camera specifically designed for demanding microscopy applications, featuring the renowned ICX825ALA CCD (M) high-performance CCD sensor with exceptional low-light capabilities and extended spectral response for near-infrared imaging.

• Scientific CCD Excellence: 1.4MP (1376×1040) resolution with 6.45 µm × 6.45 µm pixel size, sensor size of 8.88 mm × 6.70 mm , delivering superior image quality with minimal noise and exceptional linearity for quantitative analysis
• Advanced CCD Characteristics: Features Rolling Shutter technology with color imaging capability, optimized for bright field, dark field, phase contrast, fluorescence, and extended exposure applications requiring exceptional signal-to-noise performance
• High-Speed USB 3.0 Interface: Utilizes USB3.0 interface with frame rates up to 25 fps@1376×1040 , enabling real-time imaging while maintaining the superior image quality characteristics of CCD technology
• Extended Dynamic Range: 8-bit/14-bit bit depth with dynamic range reaching TBD , providing exceptional detail capture in both bright and dim regions of the sample
• Superior Low-Light Performance: Exceptional sensitivity of 2000 mv with 1/30s with extended spectral response from 380–1000 nm, enabling detection of weak fluorescence signals and near-infrared applications with minimal noise

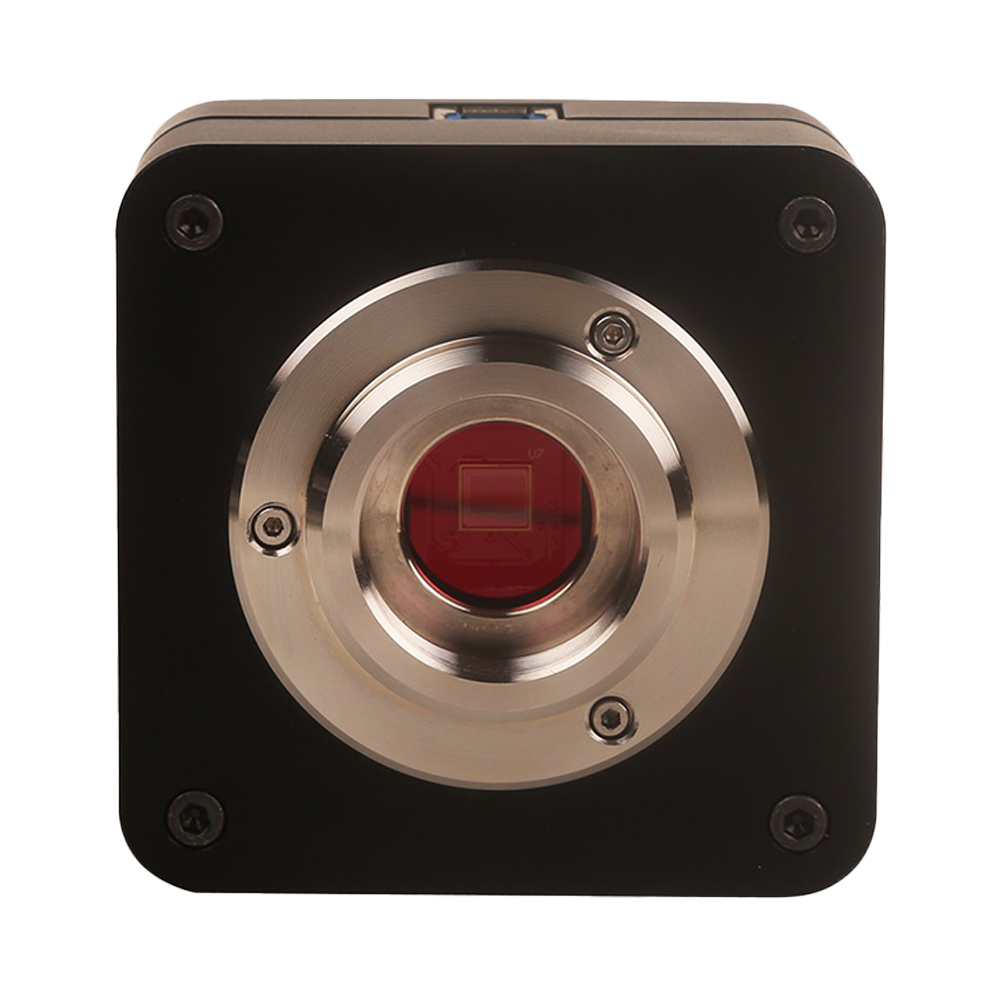

• Optical Compatibility: Standard C-mount interface ensures compatibility with all major microscope brands, with optional 0.5×/0.63×/1× adapters for optimal field of view matching

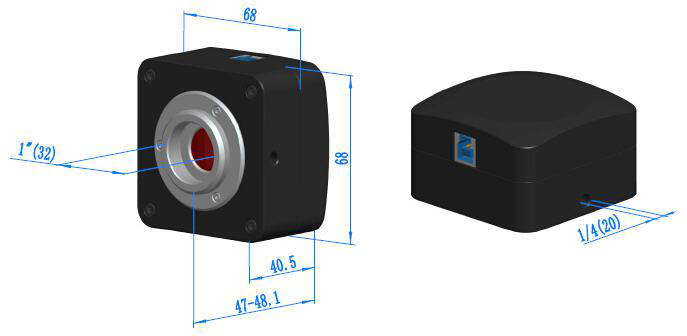

• Precision Engineering: Compact dimensions of TBD with weight of 0.67~0.75 Kg, powered by USB3.0 Power Supply , ensuring stable operation without additional power requirements
• Comprehensive Software Suite: Includes professional ToupView software with support for Windows XP/Vista/7/8/10/11(32&64-bit)/OS X/Linux operating systems, providing advanced measurement, annotation, image stitching, and focus stacking capabilities, with full compatibility for C/C++, C#, Python, ImageJ, μManager development environments

Core CCD Performance Indicators

Resolution

1.4MP (1376×1040)

Frame Rate

Up to 25 fps@1376×1040

Pixel Size

6.45 µm × 6.45 µm

Data Interface

USB3.0

Scientific CCD Imaging Features

Research-Grade Applications

Engineered for demanding research applications in life sciences, materials research, and precision metrology where exceptional image quality, linearity, and repeatability are essential for accurate quantitative analysis and scientific documentation

Extended Spectral Response

Sony ExView HAD CCD technology provides exceptional spectral response from 380–1000 nm with superior quantum efficiency in near-infrared wavelengths, enabling advanced fluorescence and multi-spectral imaging applications

Precision Measurement Capabilities

Advanced software provides comprehensive measurement tools for length, area, and angle calculations with sub-pixel accuracy, supporting statistical analysis and automated feature detection for research applications

Advanced Image Processing

Sophisticated image processing algorithms including noise reduction, shading correction, and extended exposure capabilities up to 1 hour, optimized for CCD sensor characteristics to maximize image quality and analytical precision

Scientific Excellence

The U3CCD01400KMB CCD camera represents the pinnacle of scientific imaging technology, combining the inherent advantages of CCD sensors with modern interface capabilities. Its exceptional low-light performance, extended spectral response, and superior linearity make it the ideal choice for research applications requiring the highest standards of image quality and measurement precision.
