Поставщик
|
Edmund Optics |
|
Артикул
|
19-622 |
|
Типы изделий
|
камеры |
|
Особенности
|
компактные |
|
Интерфейс
|
usb 3.1 |
|
Разрешение, Мп
|
24,6 |
|
Порт
|
под прямым углом |
|
Тип матрицы
|
цветная |
|
Mounting Threads
|
¼-20 and M6 with Tripod Mount Adapter #14-156 |
|
Image Buffer
|
256KB |
|
Video Output
|
USB 3.1 Gen 1 |
|
Manufacturer
|
Allied Vision |
|
Camera Family
|
Alvium Right Angle |
|
Model Number
|
1800 U-2460c |
|
Type
|
Color Camera |
|
Imaging Sensor
|
Sony IMX540 |
|
Type of Sensor
|
Progressive Scan CMOS |
|
Type of Shutter
|
Global |
|
Camera Sensor Format
|
1.2" |
|
Resolution (MegaPixels)
|
24.60 |
|
Pixels (H x V)
|
5,328 x 4,608 |
|
Pixel Size, H x V (μm)
|
2.74 x 2.74 |
|
Sensing Area, H x V (mm)
|
14.6 x 12.6 |
|
Frame Rate (fps)
|
14.00 |
|
Pixel Depth
|
8/10/12 bit |
|
Exposure Time
|
157μs - 10s @ 450 MBps163μs - 10s @ 200 MBps |
|
Connector
|
USB 3.1 Gen 1, Micro-B |
|
Power Supply
|
Power over USB |
|
Power Consumption (W)
|
4 |
|
GPIOs
|
4 Programmable TTL GPIOs |
|
Synchronization
|
Hardware Trigger (GPIO) or Software Trigger |
|
Dimensions (mm)
|
30 x 32 x 29 (includes connectors and lens mount) |
|
Weight (g)
|
50 |
|
Mount
|
C-Mount |
|
Housing
|
Partial |
|
Interface Port Orientation
|
Back Panel (Right Angle) |
|
Dynamic Range (dB)
|
Not Specified |
|
Operating Temperature (°C)
|
+5 to +65 |
|
Storage Temperature (°C)
|
-10 to +70 |
|
GPIO Connector Type
|
7-pin JST |
|
Machine Vision Standard
|
USB3 Vision v1.0, GenICam |
|
RoHS
|
Compliant |
Product Family Description
- Right Angle USB Port Orientation
- Compact, Low Cost, High Performance Design for Machine Vision and Embedded Applications
- ALVIUM® System on Chip (SoC) Technology with Onboard Imaging Preprocessing
- Allied Vision Alvium USB 3.1 Cameras Also Available

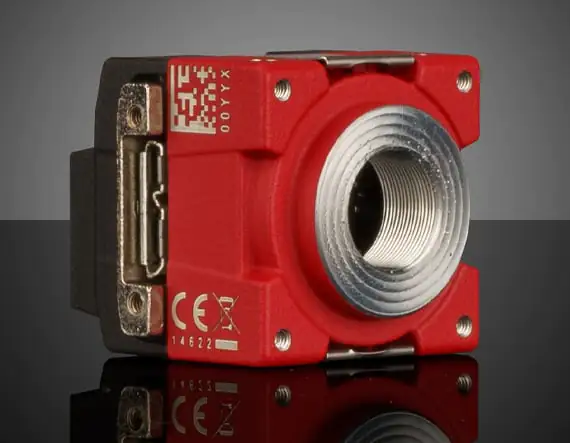

Allied Vision Alvium Right Angle USB 3.1 Cameras feature ALVIUM® System on Chip (SoC) technology and a right-angle USB port in a lightweight compact form factor, offering a comprehensive image processing library for advanced onboard image correction, preprocessing functions to relieve host computer and processor workload, and allow for easy system integration. In addition to smart camera operations, the unique SoC design also allows for low power consumption and ease of integration, making them ideal for next generation machine vision, robotics and embedded vision applications. The cameras feature a variety of popular Sony Pregius and On Semi CMOS sensors with high image quality, fast frame rate and USB3 Vision interface standard. The actively aligned lens mount minimizes inconsistency and variation. Allied Vision Alvium Right Angle USB 3.1 Cameras feature a 90° right angle USB port and are available in a variety of monochrome, color, and NIR configurations, including C-Mount, CS-Mount, and S-Mount. Full housing versions are best suited for prototyping, development and end user uses. Partial housing and board level configurations have exposed image sensor PCB without heat sinks to reduce space and facilitate system integration making them ideal for OEM embedded design.
Note: Board level versions do not have a lens mount.
