Поставщик
|
Edmund Optics |
|
Артикул
|
16-544-RCD-05P |
|
Exposure Time
|
13μs - 2s |
|
Connector
|
USB 3.0, Micro-B |
|
Power Supply
|
Power over USB |
|
Power Consumption (W)
|
1.4 - 3 |
|
GPIOs
|
2 Flash Output, 2 Trigger Input, 2 GPIO, 1 Output Supply Voltage, 1 Ground |
|
Synchronization
|
Hardware Trigger (GPIO) |
|
Dimensions (mm)
|
29.0 x 29.0 x 29.0 (excludes connectors and lens mount) |
|
Weight (g)
|
47 |
|
Mount
|
C-Mount |
|
Housing
|
Full |
|
Interface Port Orientation
|
Back Panel |
|
Dynamic Range (dB)
|
Not Specified |
|
Operating Temperature (°C)
|
0 to +55 |
|
Storage Temperature (°C)
|
-20 to +60 |
|
GPIO Connector Type
|
8-pin Hirose (HR25) |
|
Machine Vision Standard
|
USB3 Vision v1.0 |
|
RoHS
|
Compliant |
|
Type of Sensor
|
Progressive Scan CMOS |
|
Mounting Threads
|
¼-20 with Tripod Mount Adapter #35-088 |
|
Image Buffer
|
128MB |
|
Video Output
|
USB 3.0 |
|

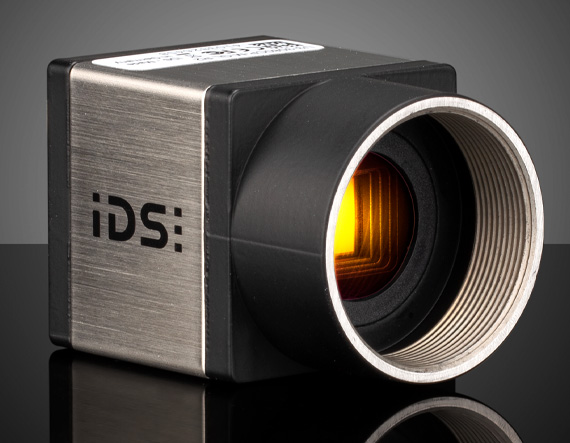

Manufacturer
|
IDS Imaging |
|
Camera Family
|
uEye+ CP |
|
Model Number
|
U3-3880CP |
|
Type
|
Color Camera |
|
Imaging Sensor
|
Sony IMX178 |
|
Pixel Depth
|
12 bit |
|
Type of Shutter
|
Rolling |
|
Camera Sensor Format
|
1/1.8" |
|
Resolution (MegaPixels)
|
6.41 |
|
Pixels (H x V)
|
3,088 x 2,076 |
|
Pixel Size, H x V (μm)
|
2.40 x 2.40 |
|
Sensing Area, H x V (mm)
|
7.41 x 4.98 |
|
Frame Rate (fps)
|
59.00 |
Product Family Description
- Compact, Robust Housing
- Feature High Resolution, High Sensitivity Sensors
- GenICam USB3 Vision Compliant
- IDS Imaging uEye+ GigE Cameras Available
IDS Imaging uEye+ USB3 Cameras provide a large number of CMOS sensor choices with a wide range of resolutions that make optimum use of the USB3 interface. These cameras feature global and rolling shutters which delivers fast frame rates up to 250 fps. These cameras are light and sturdy in a small housing, making them ideal for space-critical applications and suitable for multi-camera systems or robots. The Compact Power (CP) versions feature a robust, industry proven form factor of just 29 x 29 x 29mm and use USB Micro-B type connectors. The Standard Edition (SE) housing is further superior in robustness and provides better heat dissipation and uses USB Type-C connectors. The cameras also feature a screwable 8-pin Hirose connector for trigger and flash as well as two GPIOs. These cameras utilize IDS Imaging's latest Peak SDK platform that supports GenICam and USB3 Vision standards for ease of software development and integration. IDS Imaging uEye+ USB3 Cameras are ideal for a variety of applications such as automation, automotive, medical technology, and logistics.
